Samlex America Samlex 200W Fully Isolated DC-DC Converter - 8A - 30-60V Input - 24V Output Electrical

Samlex 200W Fully Isolated DC-DC Converter - 8A - 30-60V Input - 24V Output

CW67263

Regular price$235.80
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way
  • Ships In Less Than 24 hours
  • 30 Day Money Back Guarantee
  • 100% Secure Checkout

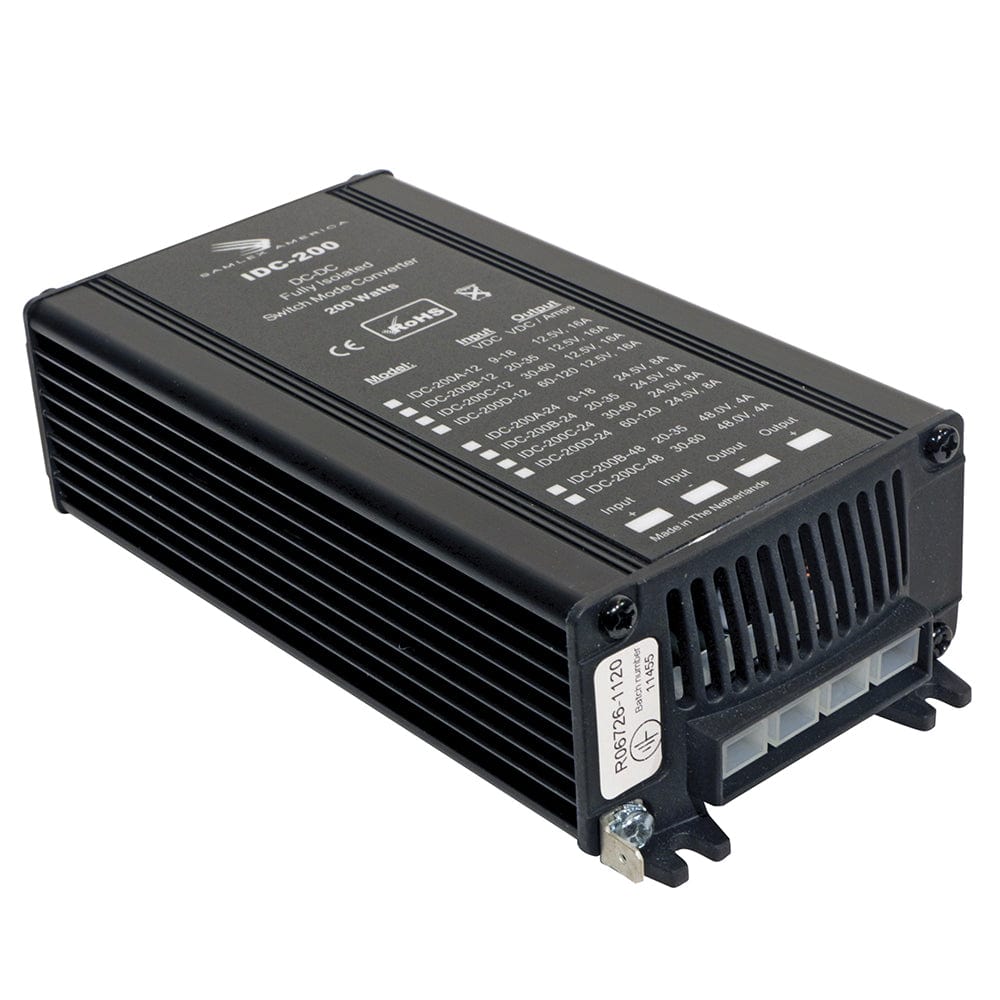

200W Fully Isolated DC-DC Converter - 8A - 30-60V Input - 24V Output

IDC-200 series is a complete line of high efficiency 200 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-200C-24 isolated DC-DC converter provides a highly regulated output DC voltage of 24.5 Volts for an input DC voltage range of 30-60 Volts and rated output current of 8 Amps (at 60 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-200C-24 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI) and EN50082-1 (for EMC).

Features:

  • Fully Isolated
  • Short Circuit Protected
  • Current Limited
  • CE Approved
  • 2 Year Warranty

Specifications:

  • Input: 30-60 VDC
  • Output: 24 VDC
  • Watts: 200
  • Amps: 8 Amps
  • Weight: 1.5 (lbs)
  • Weight: 0.68 (kg)
  • Dimensions: 6.9 x 3.5 x 1.9 (in)
  • Dimensions: 17.5 x 8.8 x 5.0 (cm)
  • Safety: CE
  • Warranty: 2 Year Limited

Applications:

  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems

WarningWARNING: This product can expose you to chemicals which are known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Manufacturer : Samlex America
Manufacturer Part No : IDC-200C-24
UPC : 622988067280
