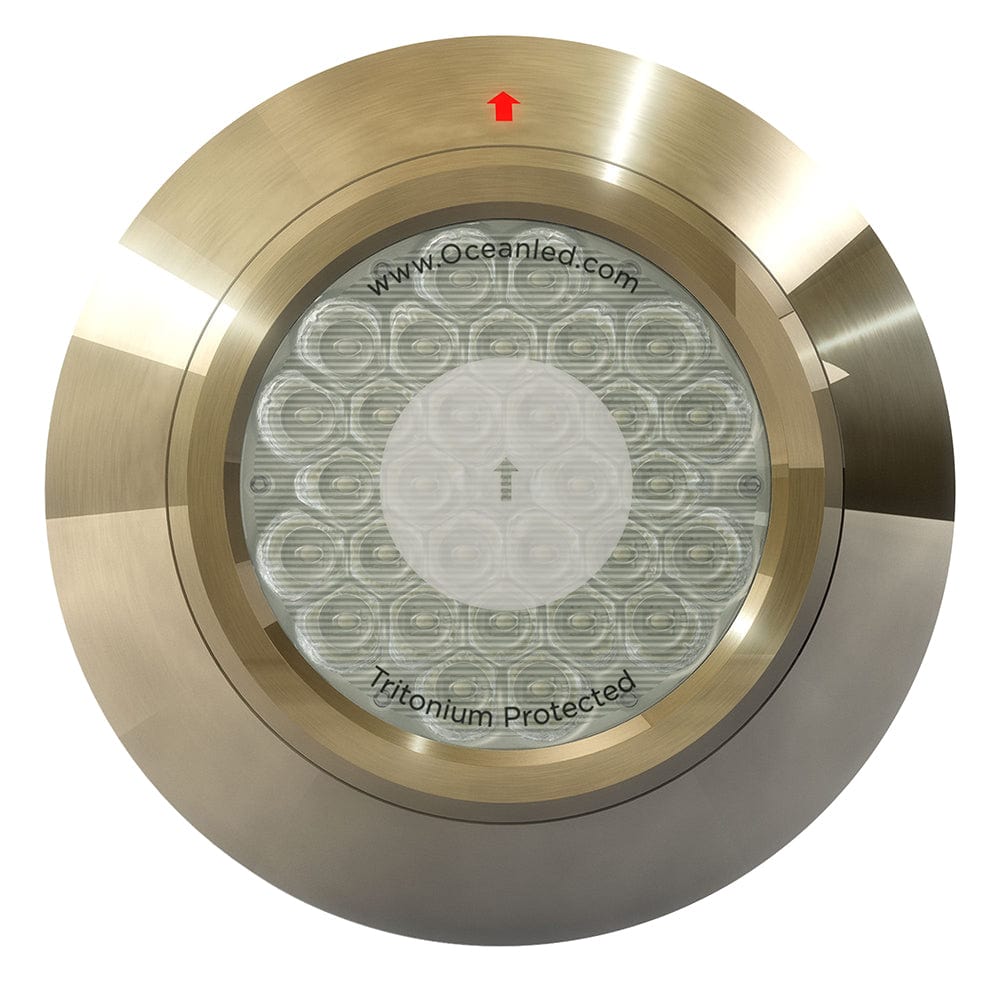

OceanLED 3010XFM Pro Series HD Gen2 LED Underwater Lighting - Ultra White

CW49710

Regular price$3,518.99
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way
  • Ships In Less Than 24 hours
  • 30 Day Money Back Guarantee
  • 100% Secure Checkout

Pro Series XFM HD Gen2

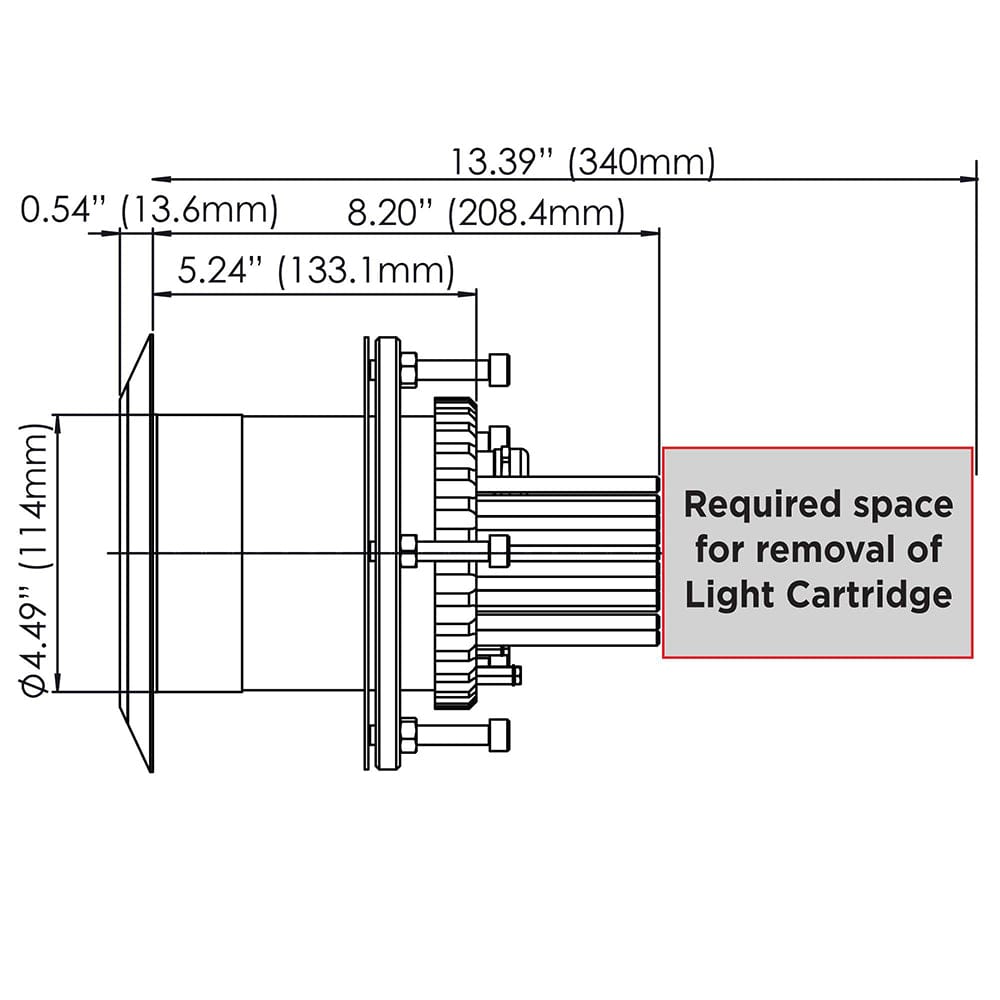

XFM models, or Xchangeable Flush Mounts, are just that - they're exchangeable without hauling should servicing ever be needed. Their exceptionally low profile head offers virtually unlimited hull mounting options, including retrofitting into most existing underwater lighting hole cut-outs, yielding immediate benefits of no startup power surge, low heat, minimal maintenance, and improved light output.

At 10,000-fixture lumen brightness the 3010XFM HD Gen2 model is 43% brighter
than its predecessor by exploiting the next generation of High Definition LEDs from Cree.

Suitable for all hull types over 65' (20m) using 4 or more lights with spacing of 3-6' (1-1.8m) - for metal hulls, add the Delrin Isolation Sleeve accessory. Deutsch plugand- play quick connectors make this light a quick fit. Maintenance is easy; just wipe away marine growth from its scratch resistant Tritonium glass lens. Three super bright LED color options.

For a light that's less bright choose 2010XFM HD Gen2. For a light with a smaller hole cut-out better suited for transom mount applications choose 3010TH. For a light with color-change capabilities choose from our Colours models.

  • 12/24vDC (AC Upgrade Available)
  • 40,000+ Hour Life
  • Tritonium™ Marine Growth Protection
  • Plug & Play
  • Aluminium Bronze AB2
  • Factory Sealed
  • Reverse Polarity Protected


Mounting Recommendations:
Boat Size:up to 65' (20M)
Transom Spacing:3-6' (1.0-1.8M)
Transom Quantity: 4+
Hull Spacing:4-8' (1.2-2.4M)
Installation Depth (to top of fixture): 10-12" (250-300mm)

Technical
Light Output Equivalent To: 2x100W HID Metal Halides
Fixture Lumens (total light output from a finished fixture): 10,000
Current/Amp Draw (DC) (AC Upgrade Available): 12VDC 10A / 24VDC 5A
Current/Amp Draw (AC): 110VAC 50/60HZ 1.3A / 240VAC 50/60HZ 0.6A
Manufacturer : OceanLED
Manufacturer Part No : 001-500748
UPC : 5051803005605
