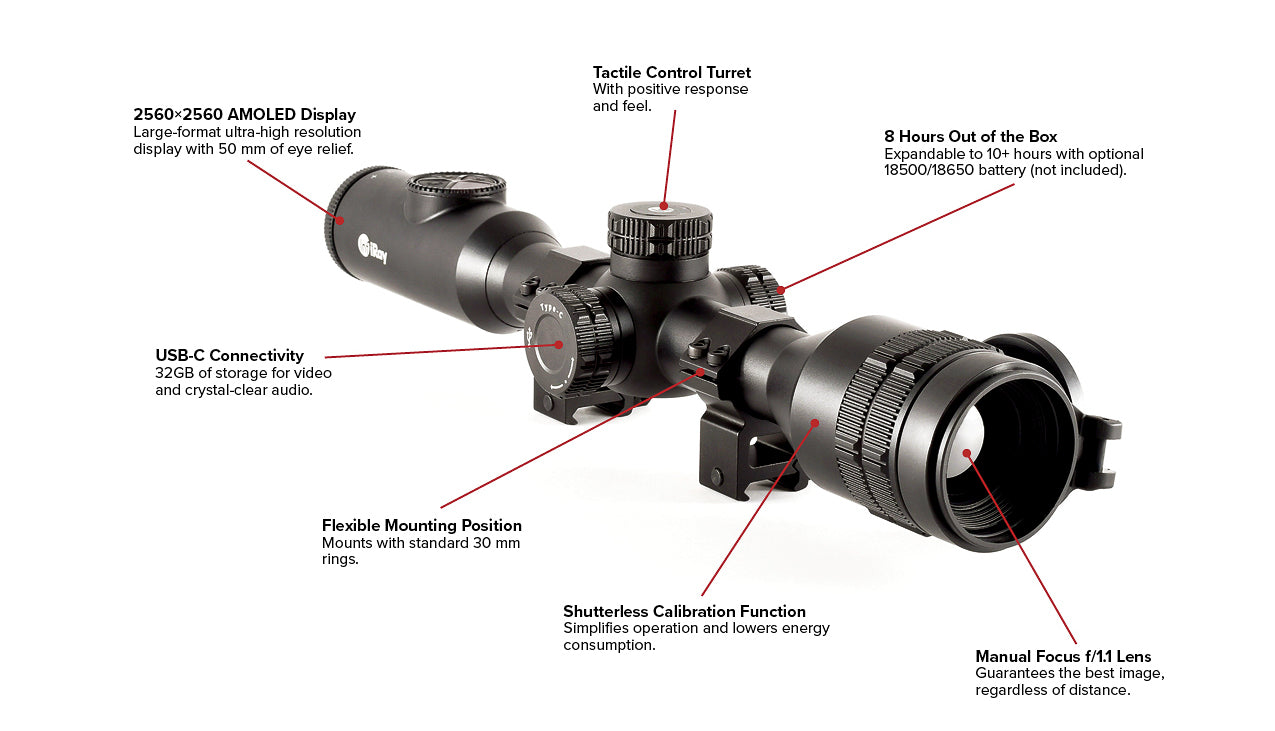

The InfiRay Outdoor BOLT TH50C V2 expands on the success of the TH50C with the addition of improved audio recording and an optional Bluetooth laser rangefinder module. InfiRay’s industry-leading 12 μm 640×512 Micro II sensor, 1.03-inch large-format 2560×2560 resolution display, and Shutterless Calibration feature are now more powerful than ever, while still maintaining the proven combination of a manual focus lens, dual battery design, and tactile control turret. The BOLT TH50C V2’s traditional look and flexibility of a 30 mm ring mounting interface also guarantee the perfect fit on your favorite hunting rifle.
Operating Temperature Range -4°F~122°F
| Sensor Specifications | Specification |
|---|---|
| Sensor Resolution | 640×512 |
| Sensor Pixel Size | 12μm |
| Sensor Frame Rate | 50hz |
| Detection Range | 2400 Yards |
| Device Technology | Thermal Imaging |
| Optics | Specification |
|---|---|
| Objective Focal Length | 50mm |
| Detection Range | 2400 Yards |
| Display Type | AMOLED |
| Eye Relief | 50mm |
| Digital Magnification | 4X, stepped |
| Diopter Range | -5 - +3.5 |
| Display Resolution | 2560×2560 |
| Optical Magnification | 3.5X |
| Vertical Angular FOV | 7° |
| Horizontal Angular FOV | 8.8° |
| Focusing Mechanism | Manual Focus |
| Objective F# | 1.1 |
| Objective Diameter | 50mm |
| Objective Lens Material | Germanium |
| Features & Performance | Specification |
|---|---|
| Onboard Recording | Yes |
| Warranty | 5 Years |
| Rangefinder | Bluetooth ILR-1200-1 LRF (Optional) |
| Picture-in-Picture | Yes |
| Reticle | 7 (2 Dynamic, 5 Static) |
| Startup Time | Under 10 Seconds |
| Color Palettes | White Hot, Black Hot, Red Hot, Color, Highlight |
| Storage Capacity | 32GB |
| Connector Output | Power/Data |
| User-Updatable Firmware | Yes |
| Mobile App | Yes |
| Run Time | 8+ Hours |
| Power Source | Dual Power Supply (8+ Hours), 18500 Battery (2+ Hours), 18650 Battery (3.5+ Hours) |
| One-Shot Zero | Yes |
| Stand-by Mode | Yes |
| Connector Type | USB-C |
| External Power Source | USB-C or 18500/18650 |
| Country of Manufacture | China |
| Wifi | Yes |
| Image Capture | Yes |
| Video Output | Analog RS-170/NTSC |
