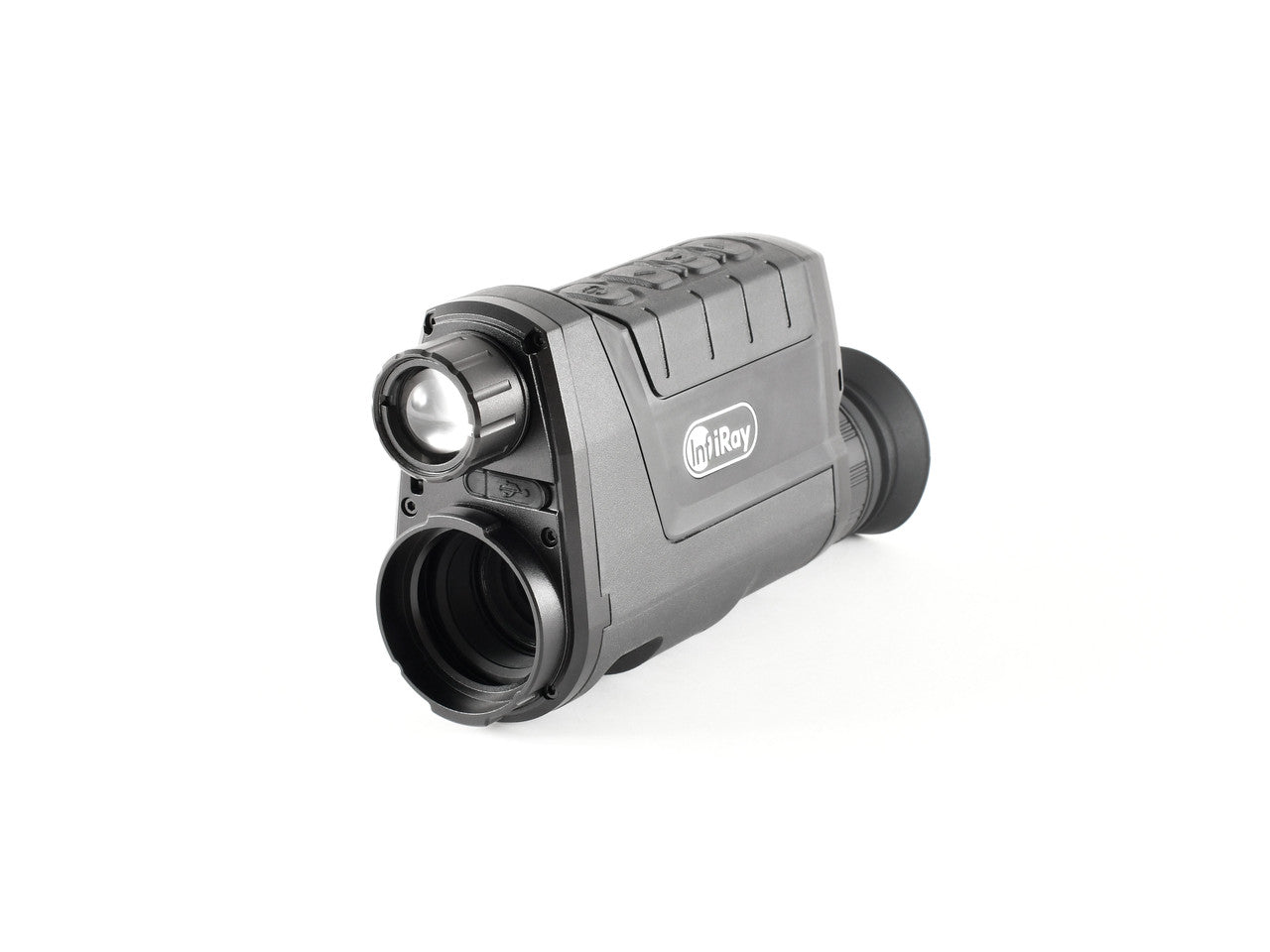

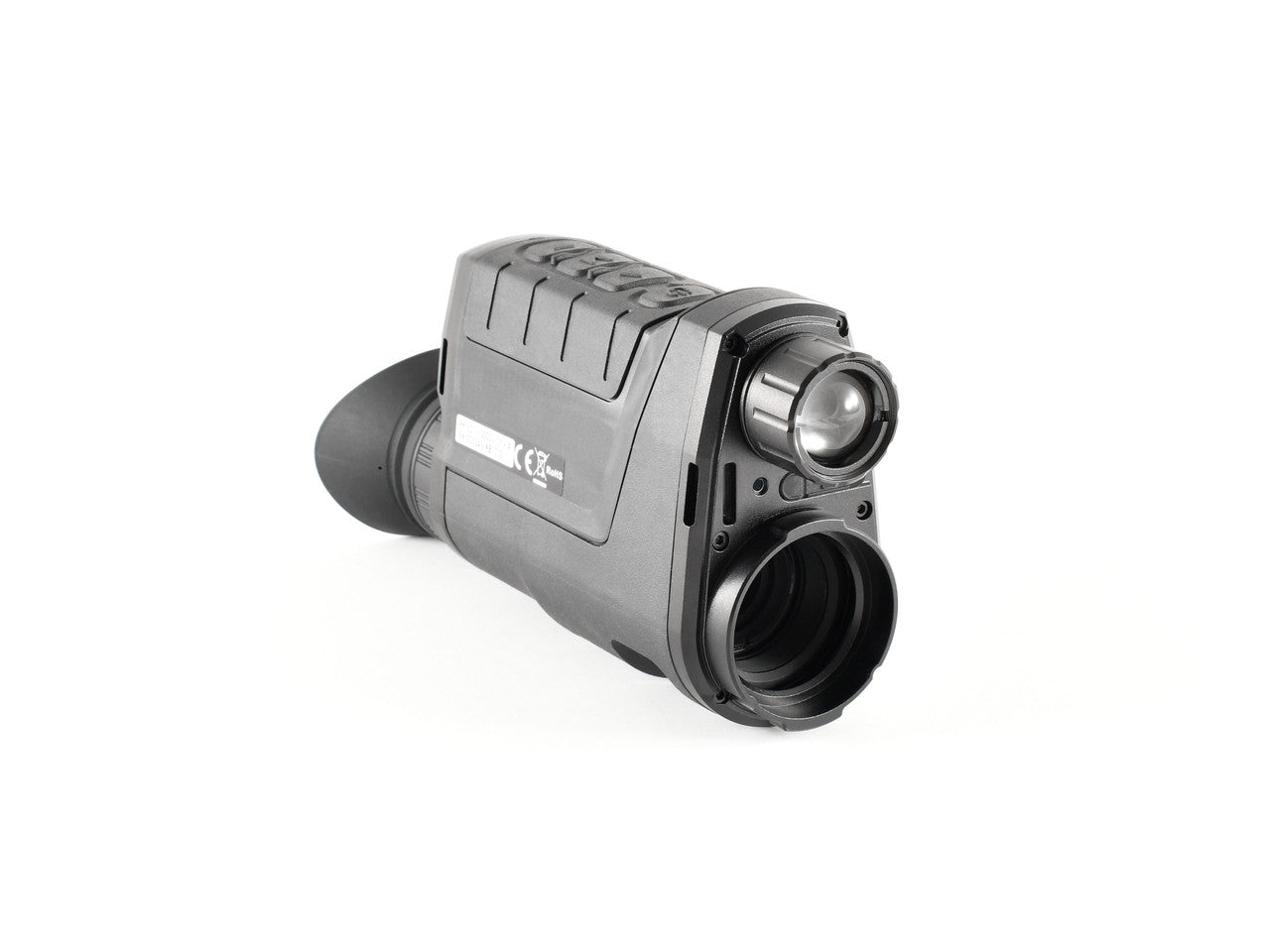

The InfiRay Outdoor Cabin Series is a compact and powerful optic that operates easily with one hand. The CABIN is available with multiple lens options and its 50Hz 12um Micro II sensor featuring InfiRays next generation MATRIX III processing ensures an unmatched viewing experience on its HD display. Standard features of the Cabin Series include a quick focus F:1.0 lens, stadiametric rangefinder, image and video capture, wireless connectivity, picture in-picture and an LED flashlight to guarantee you have everything you'll need in the palm of your hand.
Operating Temperature Range -4°F-122°F
| Optics | Specification |
|---|---|
| Objective Focal Length | 19mm f/1.0 |
| Optical Magnification | 2X |
| Digital Magnification | 4X, stepped |
| Detection Range | 1070 Yards |
| Display Type | LCOS |
| Display Resolution | 1280×960 |
| Eye Relief | 20mm |
| Diopter Range | -5 - +5 |
| Objective F# | 1.0 |
| Horizontal Angular FOV | 13.8° |
| Vertical Angular FOV | 10.4° |
| Objective Lens Material | Germanium |
| Focusing Mechanism | Manual Focus |
| Sensor Specifications | Specification |
|---|---|
| Sensor Resolution | 384×288 |
| Sensor Pixel Size | 12μm |
| Sensor Frame Rate | 50hz |
| Sensor Type | InfiRay MICRO II |
| Thermal Sensitivity | <50mk |
| Non-Uniformity Correction (NUC) | Manual, Automatic, Semi-Automatic |
| Spectral Response | 8-12 Microns |
| Device Technology | Thermal Imaging |
| Features & Performance | Specification |
|---|---|
| Onboard Recording | Video and Image |
| Wifi | Yes |
| Connector Type | USB-C |
| Power Source | Li-Ion Battery Pack (IBP-2), External USB-C |
| Startup Time | 10 Seconds, Instant from Standby |
| Warranty | 5 Years |
| Run Time | 6 hours on Li-Ion Battery Pack |
| Image Capture | Yes |
