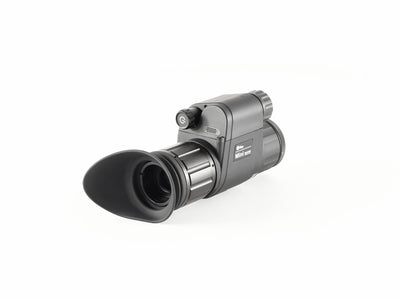

The InfiRay Outdoor MINI MH25 V2 is a compact, lightweight thermal imager designed for handheld or helmet-mounted use. Its unique design allows for seamless operation as a handheld monocular, and it can easily transition to a helmet mount for hands-free use. The MH25 V2 is powered by a 50hz 12 m sensor and features next-generation MATRIX III processing for an unmatched viewing experience. In addition to the features found on the original MH25, the MH25 V2 adds several features including an upgraded AMOLED display; upgraded eyepiece and onboard video and audio recording.
Operating Temperature Range -4°F~122°F
| Device Technology | Thermal Imaging |
|---|---|
| Sensor Resolution | 640×512 |
| Optical Magnification | 1X |
| Digital Magnification | 4X, stepped |
| Sensor Pixel Size | 12μm |
| Sensor Frame Rate | 50hz |
| Objective Focal Length | 25mm |
| Objective Diameter | 25mm |
| Objective F# | 1.0 |
| Detection Range | 1375 Yards |
| Onboard Recording | Yes |
| Optics | Specification |
|---|---|
| Optical Magnification | 1X |
| Digital Magnification | 4X, stepped |
| Objective Focal Length | 25mm |
| Objective Diameter | 25mm |
| Objective F# | 1.0 |
| Objective Focusing Range | 2 meters to infinity |
| Horizontal Angular FOV | 17.5 |
| Vertical Angular FOV | 13.1 |
| Detection Range | 1375 Yards |
| Eyepiece Focal Length | 27mm |
| Eye Relief | 20mm |
| Exit Pupil | 14mm |
| Diopter Range | -4 - +3 |
| Display Type | AMOLED |
| Objective Lens Material | Germanium |
| Focusing Mechanism | Manual Focus |
| Display Resolution | 1280×960 |
| Features & Performance | Specification |
|---|---|
| Power Source | CR123 Battery |
| Video Output | Analog RS-170/NTSC |
| Image Capture | Yes |
| Onboard Recording | Yes |
| Bluetooth | Yes |
| Wifi | Yes |
| Country of Manufacture | China |
| Connector Output | Power/Data |
| Startup Time | Under 10 Seconds |
| Warranty | 5 Years |
| Run Time | 2.5+ |
| Connector Type | USB-C |
| Mobile App | Yes |
| Color Palettes | White Hot, Black Hot, Red Hot, Rainbow |
| User-Updatable Firmware | Yes |
| Storage Capacity | 32GB |
| External Power Source | USB-C |
| Sensor Specifications | Specification |
|---|---|
| Device Technology | Thermal Imaging |
| Sensor Resolution | 640×512 |
| Sensor Pixel Size | 12μm |
| Sensor Frame Rate | 50hz |
| Thermal Sensitivity | <50mk |
| Spectral Response | 8-12 Microns |
| Sensor Type | InfiRay MICRO II |
| Non-Uniformity Correction (NUC) | Manual, Automatic, Semi-Automatic |
