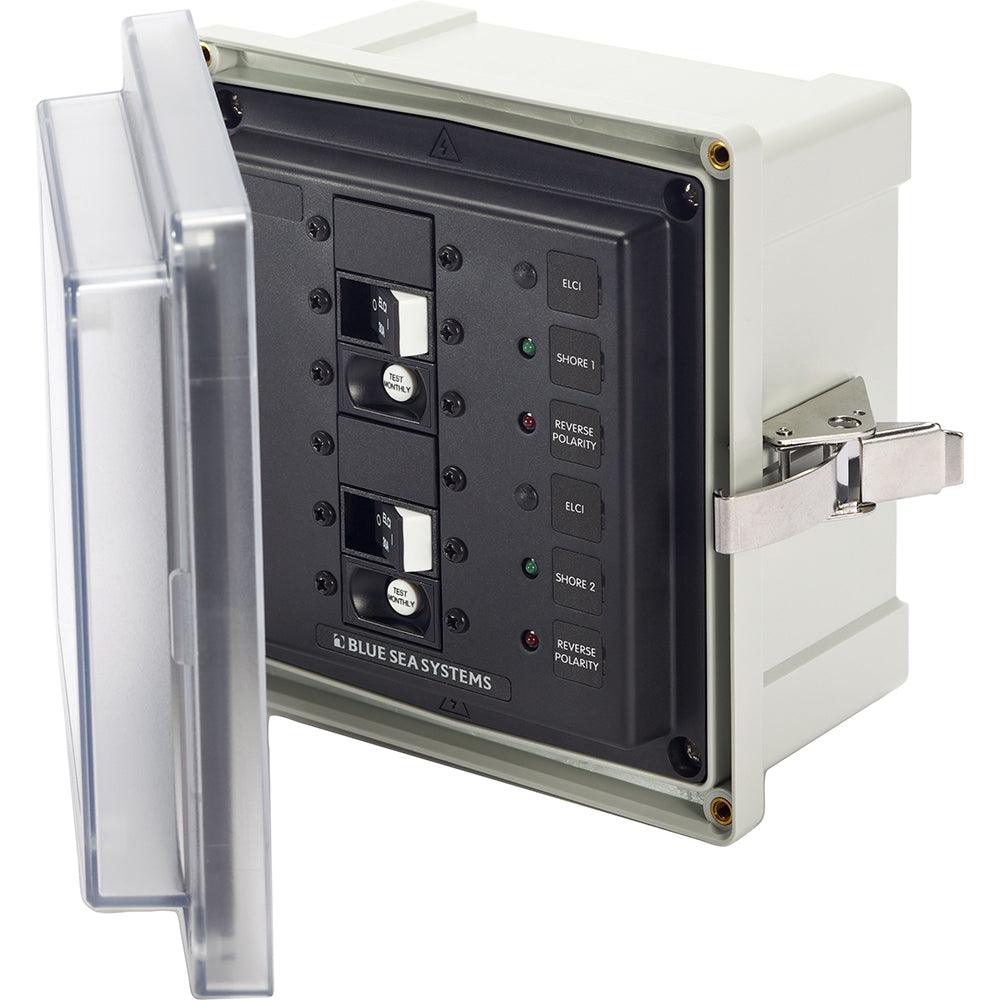

3117 - SMS Panel Enclosure with 2 ELCI (30A) - 120V AC
The 3117 panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.
Features:
- Blank apertures for custom breaker loading
- Glass filled polycarbonate base
- Clear cover allows easy view of circuit breaker status
- Overlapping cover for strength and increased gasket protection
- Oversized, formed in place seamless PUR gasket
- Easily removable stainless steel hinge pin for unobstructed installation
- Stainless steel latch secures cover without penetrating the enclosure
- Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
- Includes waterproof glands
- LED lights for back lighting and ON indication
Technical Specifications:
- Circuit Breaker Type - 2 x ELCI (30A) Main 120V
- Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
- Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
- LEDs Installed - 2 x Red (Reverse Polarity - 120V AC and 2 x Green ON (120V AC)
In the Box:
- 3117 Enclosure
- Glands x 6
- Labels
- Mounting hardware
- Instruction manual
*Sold as an Individual
WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.
Manufacturer : Blue Sea Systems
Manufacturer Part No : 3117
UPC : 632085031176
