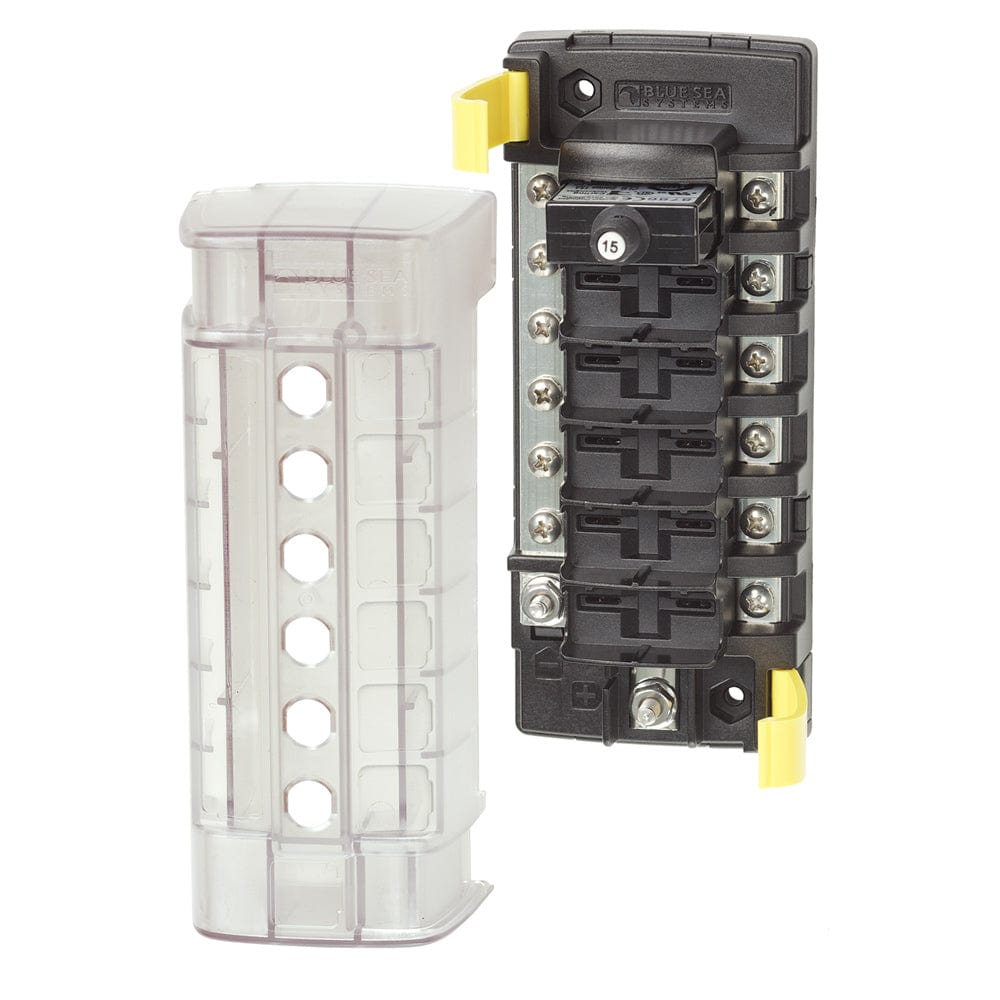

Name: Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus
Brand: Blue Sea Systems
SKU: CW51811
Price: 73.99 USD
Availability: InStock

Blue Sea Systems Blue Sea 5052 ST CLB Circuit Breaker Block - 6 Position w/Negative Bus Electrical

$77.78 $73.99 Save $3.79

Shipping calculated at checkout.

In stock, ready to ship
Inventory on the way

Ships In Less Than 24 hours

30 Day Money Back Guarantee

100% Secure Checkout

ST CLB Circuit Breaker Block - 6 Position w/Negative Bus

Features

Quick connect clips allow circuit breakers to snap easily into place
Tin-plated copper busses and screw terminals
Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
Easy to open clip on cover
Breakouts allow wire access in two directions
Accepts ring terminals
Optional push button waterproof boots or dress nuts can be installed over cover

Specifications:
Circuits: 6
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 5.63"(143 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 0.75lb (0.34 kg)

Warning WARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Manufacturer : Blue Sea Systems
Manufacturer Part No : 5052
UPC : 632085050528
