Blue Sea 5054 ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

CW51812

Regular price $133.42 Sale price$125.99 Save $7.43
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way
  • Ships In Less Than 24 hours
  • 30 Day Money Back Guarantee
  • 100% Secure Checkout

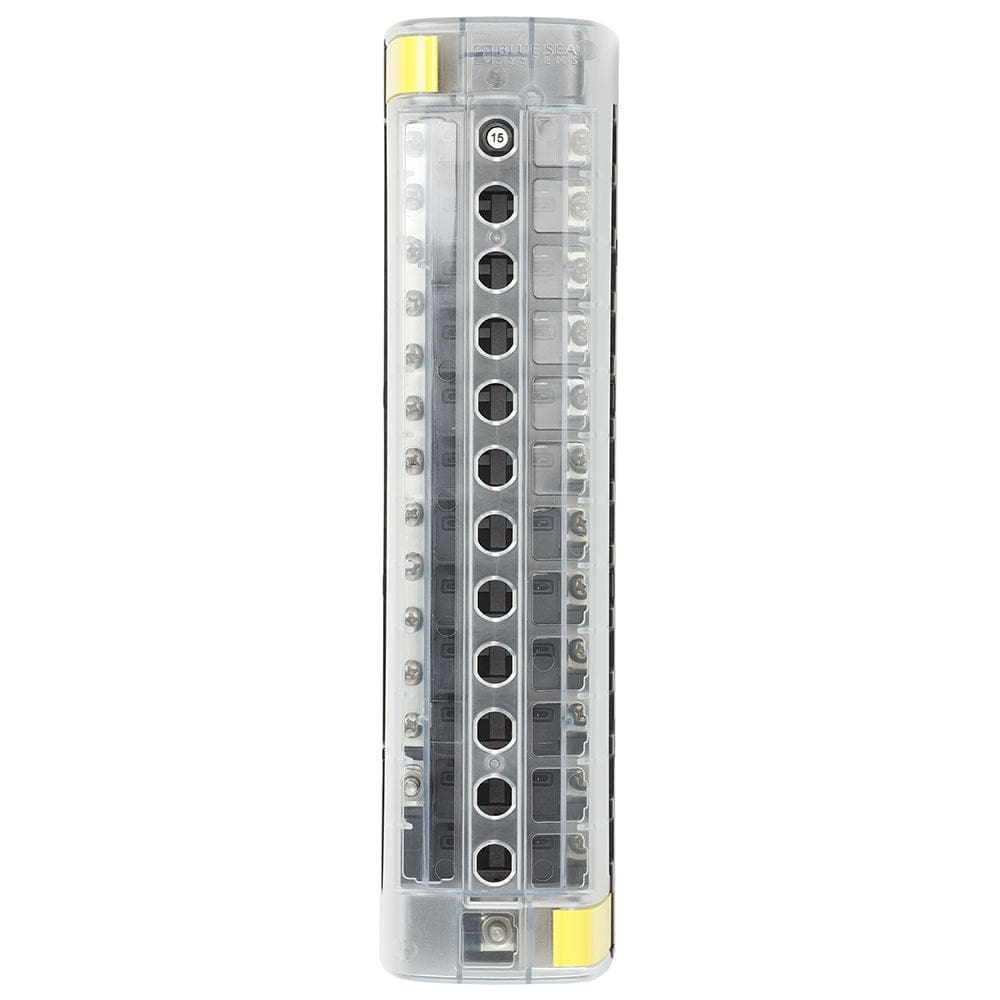

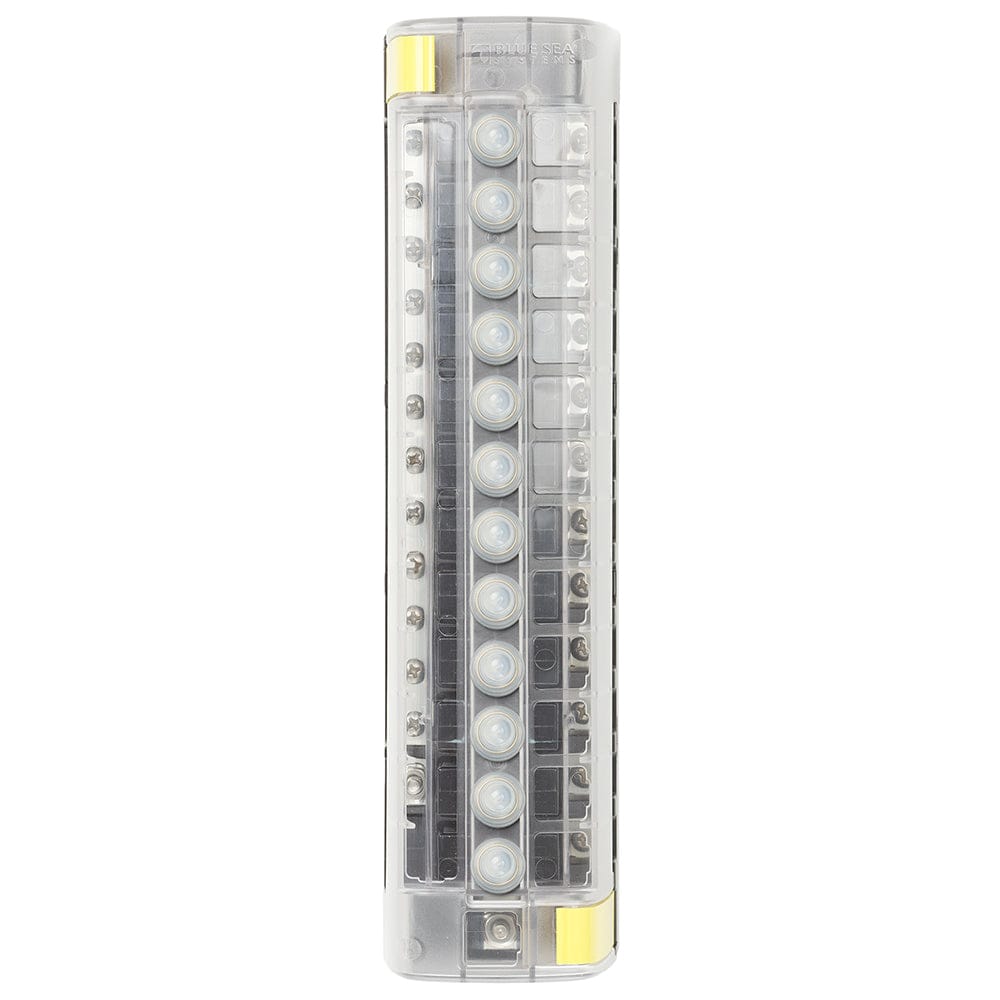

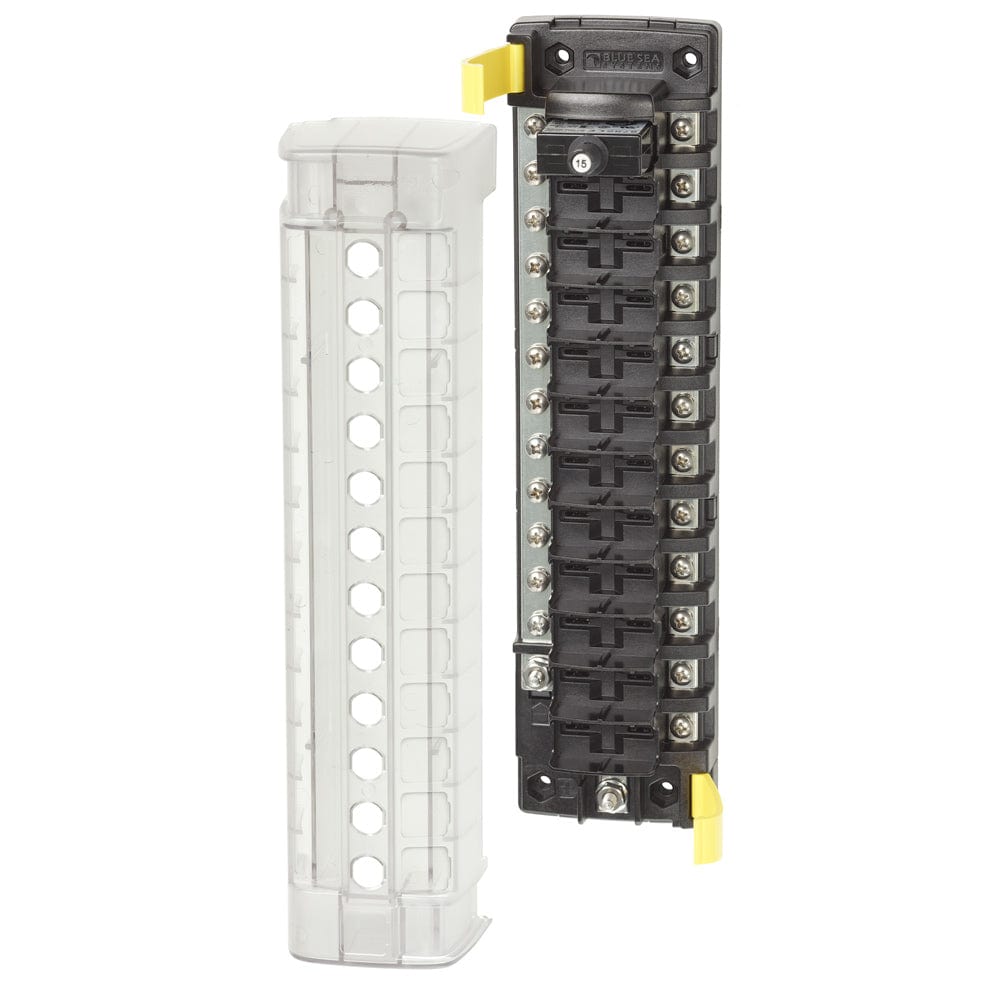

ST CLB Circuit Breaker Block - 12 Position w/Negative Bus

Features
  • Quick connect clips allow circuit breakers to snap easily into place
  • Tin-plated copper busses and screw terminals
  • Clear insulating cover with square format label recesses, satisfies ABYC/USCG insulation requirements
  • Easy to open clip on cover
  • Breakouts allow wire access in two directions
  • Accepts ring terminals
  • Optional push button waterproof boots or dress nuts can be installed over cover


Specifications:
Circuits: 12
Maximum Amperage: 100A (per block) 32A (per circuit)
Maximum Voltage: 32V DC
Mounting: #8 Screw (M4) or #8 Nut
Negative Bus: Yes
Source: Common SourceMinimum Operating Temperature: -10° C
Maximum Operating Temperature: 60° C
Mounting Centers: 10.13"(257.3 mm)
Screw Terminal Type: #8-32 Screws with Captive Star Lock Washer
Height: 6.69"(169.93 mm)
Weight: 1.50lb (0.68 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Manufacturer : Blue Sea Systems
Manufacturer Part No : 5054
UPC : 632085050542
