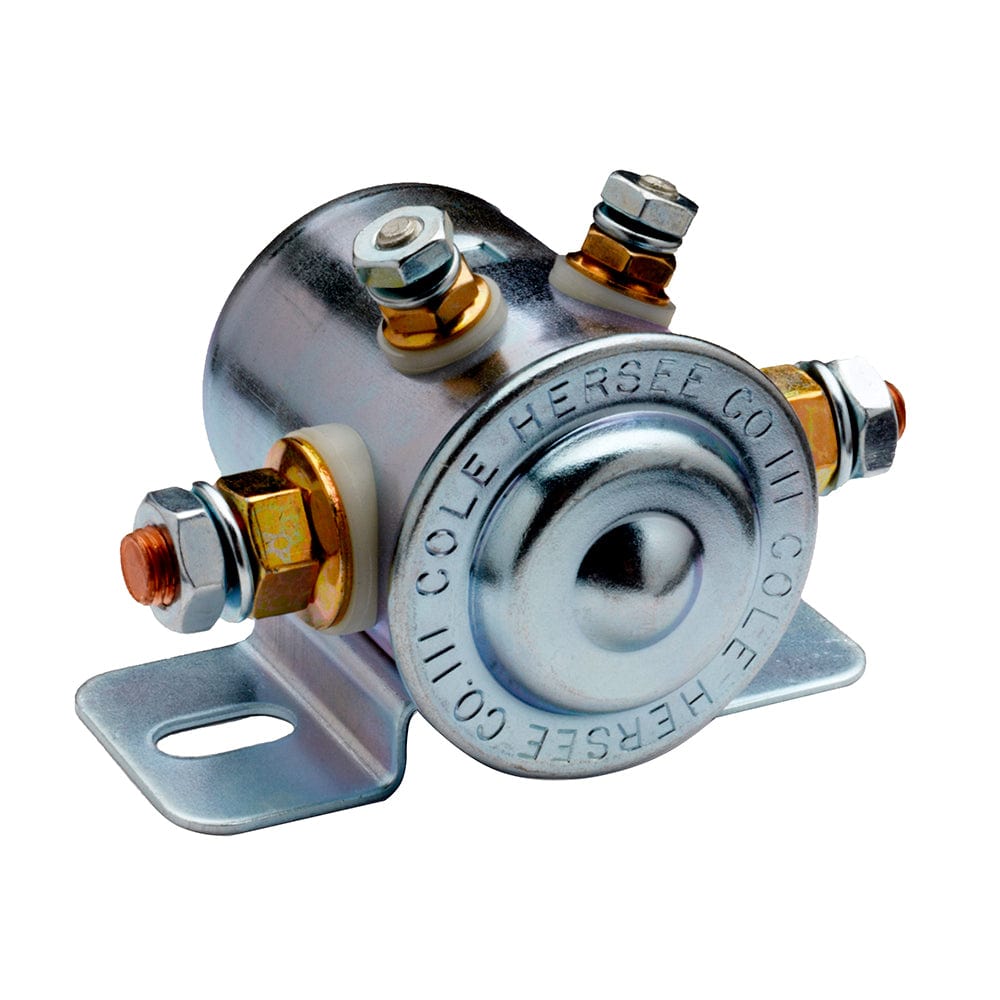

Cole Hersee Continuous Duty Solenoid 85 AMP - 12V

Cole Hersee Continuous Duty Solenoid 85 AMP - 12V

CW69454

Regular price $32.99 Sale price $30.99
/

Only 21 items in stock!

Continuous Duty Solenoid - 12V

Minimizes arcing and contact oxidation, maintains highp erformance. Universal use with part numbers available to handle loads up to 200A.

PVC Coated option available for a more environmentally sealed product. Coated solenoids withstand moisture and dust to IP66.

Mechanical Specifications:

  • SPST Normally open contacts
  • Plated steel housing. Hexnuts and washers included
  • Large (power circuit) battery studs; copper
  • 5/16” -24 thread
  • Small (control circuit) coil studs; steel 10-32 thread
  • Bracket mounting holes 5/16 X 19/32” (7.9 X 15.1mm) on
  • 2 13/64” centers (56.0mm)
  • Available with PVC coated exterior or Potted Coil interiors
  • for harsh environments or vibration resistance
  • Caution: Never unscrew the inner hexnuts on the studs
  • These keep the stud and inner wiring in place

Manufacturer : Cole Hersee
Manufacturer Part No : 24059-BP
UPC : 632850533010
