Lenco 12" x 12" Electro-Polished Edge Mount Trim Tab Kit

Lenco 12" x 12" Electro-Polished Edge Mount Trim Tab Kit

CW56448

Regular price $995.23 Sale price $812.99 Save $182.24
/

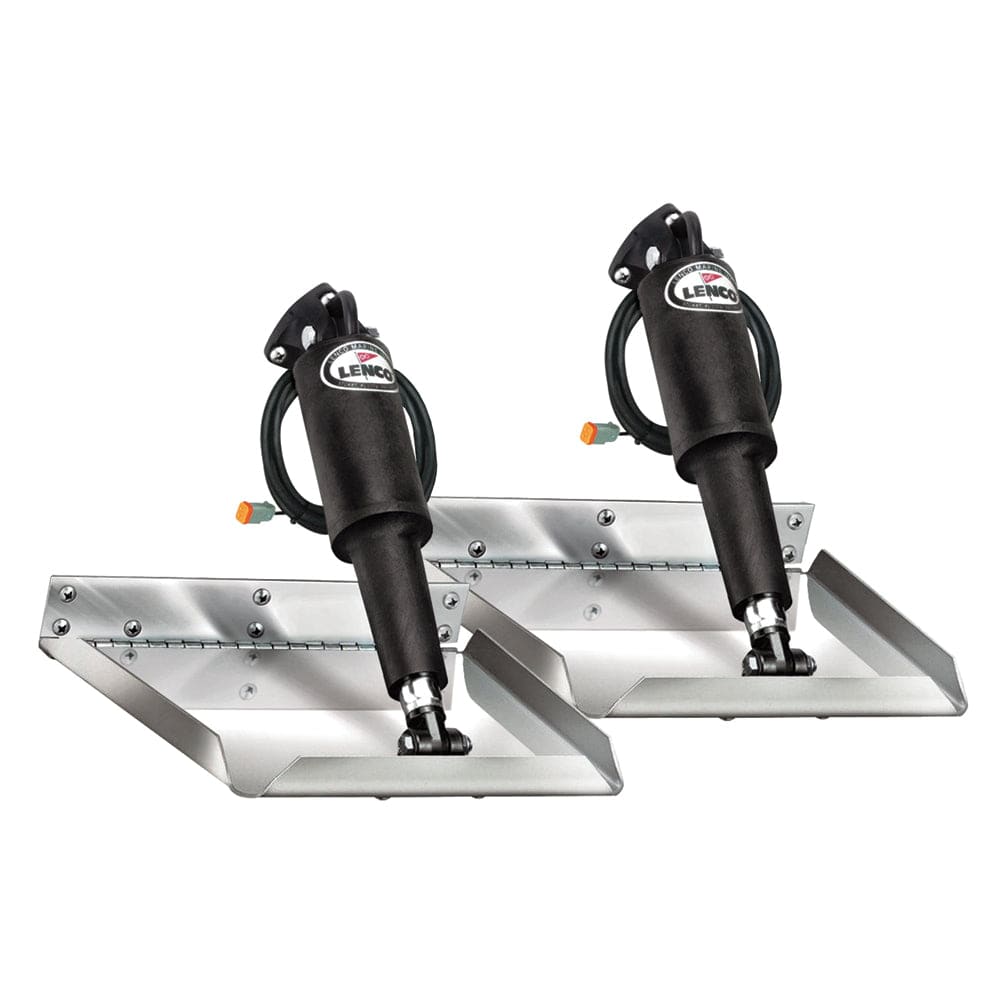

12" x 12" Electro-Polished Edge Mount Trim Tab Kit
12 Volt

Fast response electric actuators for precise control. Fully submersible. All Plug & Play Deutsch connections. Electro-Polished blades are constructed of 12-gauge 304 stainless steel with 1" turned up edges and an 85x inside taper and 1/8" diameter stainless steel hinge pin. The actuators mount at the trailing edge of the blades, requiring 1/2" less transom height than the standard mount tabs.

Kits include:
  • (2) 12-gauge stainless steel Electro-Polished blades
  • (2) 15054-001 actuator with 6' leads and Deutsch connectors
  • (2) 30133-103 20' actuator extension wiring harnesses
  • (2) 15085-001 upper mounting brackets with gland seal
  • (2) 50014-001 lower mounting brackets
  • Lenco owner's/installation manual
  • Stainless steel mounting hardware


Specifications:
  • Boat Length:17' - 30'
  • L" x W":12" x 12"
  • Hinge Height:2"
  • Minimun Transom Height:11"


WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.


Manufacturer : Lenco Marine
Manufacturer Part No : 15116-101
UPC : 874847006804
