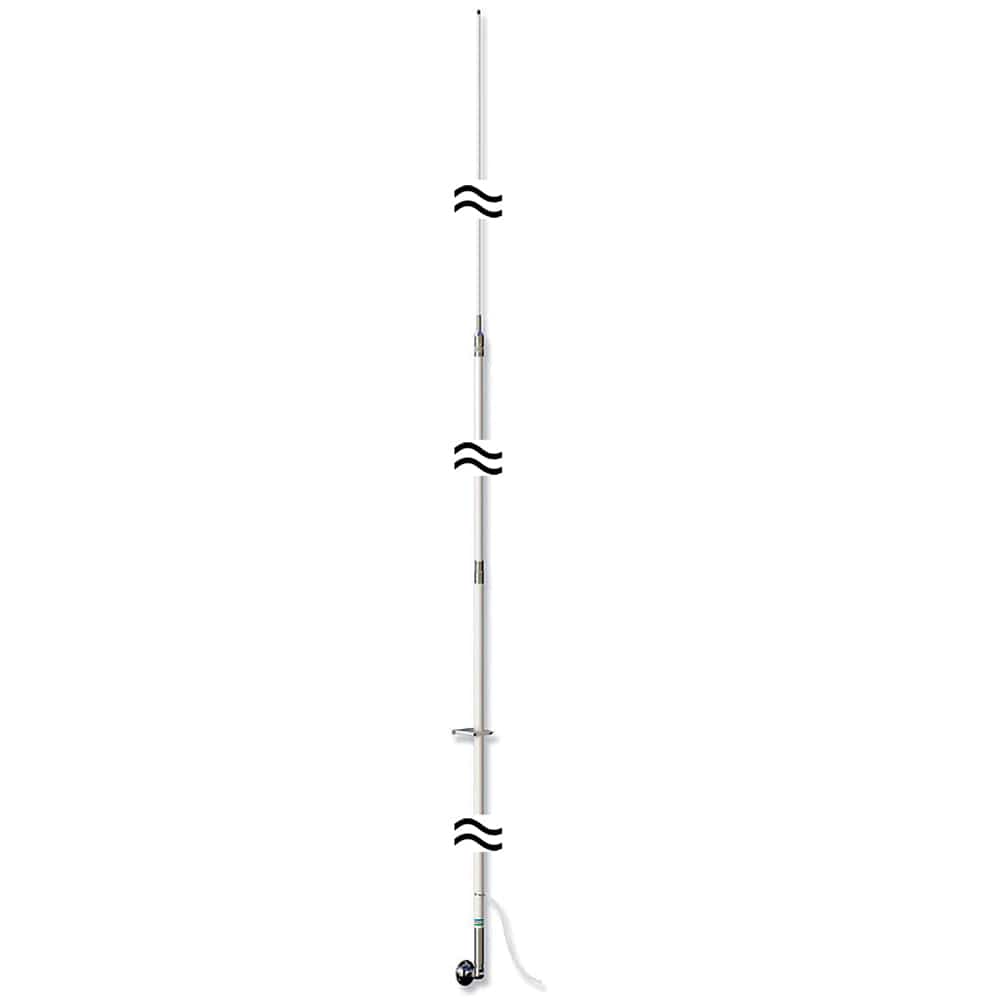

Shakespeare Style 393 SSB
23' LENGTH
WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)
The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.
Technical Specifications:
Manufacturer : Shakespeare
Manufacturer Part No : 393
UPC : 719441600075
23' LENGTH
WHIP ANTENNA WITH CONDUCTORS RUNNING FULL-LENGTH (NO LOADING COIL)
The Style 393 antenna is electrically the same as the industry standard Style 390, For use in calm to moderate seas.
- Chrome-plated brass ferrules, bottom ferrule has 1"-14 thread
- Side feed termination band
- Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit for deck or side mounting
- Three sections: Base 92"; Center 92"; Tip 92"
- Shakespeare Limited Warranty: 2 years
Technical Specifications:
Frequency: | 2-30 MHz HF band with tuner |
Bandwidth: | Resonant frequency 10.8 MHz |
SWR: | N/A |
Impedance: | (Ohms): N/A |
Gain: | N/A |
Max Input (Watts): | 1000 |
DC Ground: | N/A |
Termination: | Side Termination |
Height (feet): | 23 |
Polarization: | Vertical |
Radiation pattern: | Omni-directional |
Manufacturer : Shakespeare
Manufacturer Part No : 393
UPC : 719441600075
