Wichard Captive Pin Bow Shackle - Diameter 5mm - 3/16"
Wichard Captive Pin Bow Shackle - Diameter 5mm - 3/16"

Wichard Captive Pin Bow Shackle - Diameter 5mm - 3/16"

CW93127

Regular price $26.30 Sale price $20.99 Save $5.31
/

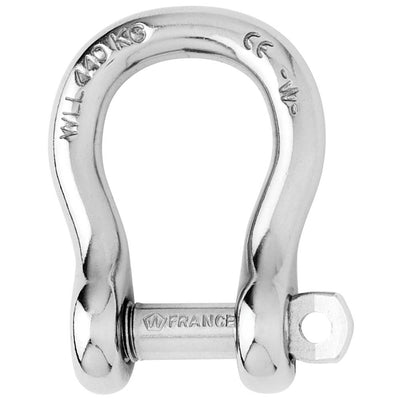

Captive Pin Bow Shackle - Diameter 5mm - 3/16"

Features:

  • Captive pin bow shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads
  • Single handed operation for more safety
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking and batch number

Applications:

  • To be used when ample room is required
  • Possibility to attach several lines or cables

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 1050
  • WLL (lb) 660
  • Breaking load (lb) 3300
  • Weight (lb) 0.042

Dimensions (see 2nd image):

  • A (inch) 29/32"
  • B (inch) 25/64"
  • C (inch) 15/64"
  • D (inch) 7/16"
  • D diameter (inch) 13/64"
  • E (inch) 13/64"
  • M (inch) 1-1/32"

Manufacturer : Wichard Marine
Manufacturer Part No : 01442
UPC : 768536014426
