Wichard Captive Pin Long D Shackle - Diameter 10mm - 13/32"

CW93119

Regular price $105.20 Sale price$94.99 Save $10.21
/
Shipping calculated at checkout.
  • In stock, ready to ship
  • Inventory on the way
  • Ships In Less Than 24 hours
  • 30 Day Money Back Guarantee
  • 100% Secure Checkout

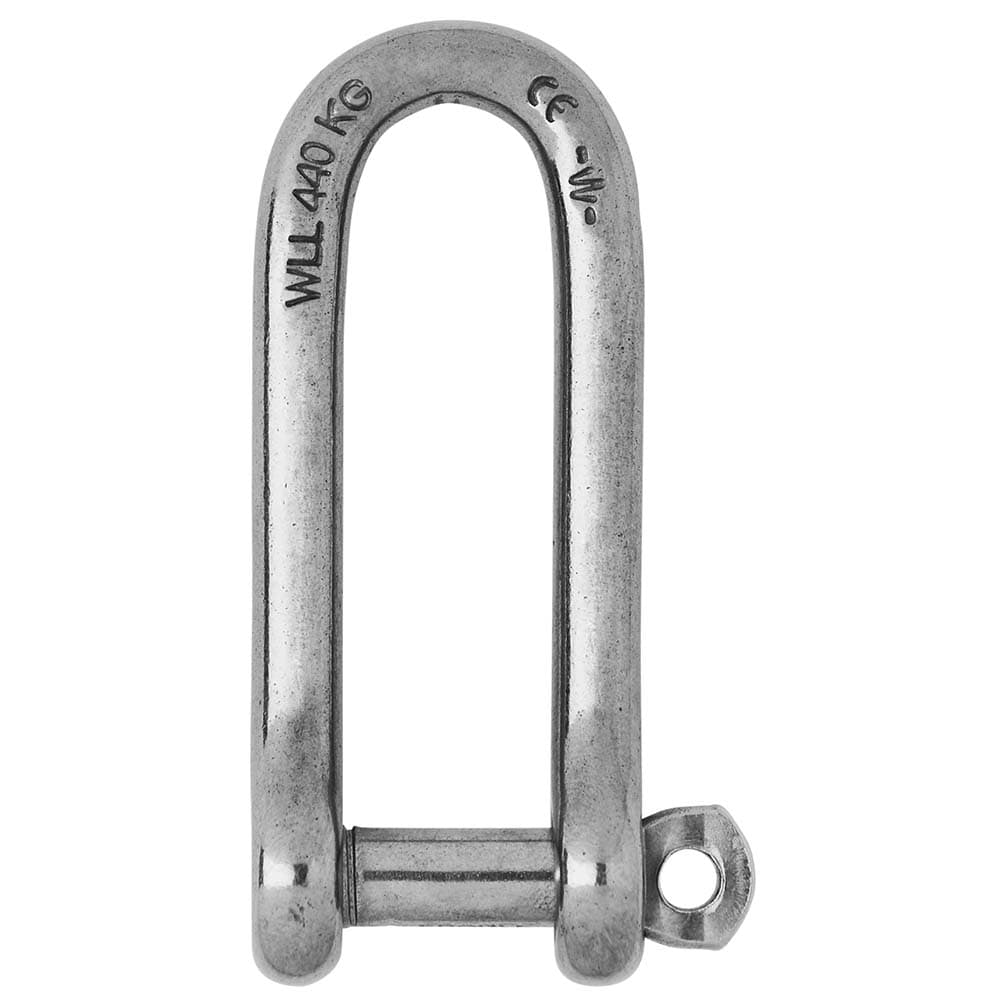

Captive Pin Long D Shackle - Diameter 10mm - 13/32"

Features:

  • Captive pin long "D" shackle forged in grade 316L stainless steel
  • The pin is connected to the body at all times even when opened
  • The pin is locked into one of the indentations
  • No risks of loosening due to vibrations
  • Outstanding working and breaking loads

Applications:

  • Standard applications of shackle requiring more length
  • Attachment applications: blocks, head...

Specifications:

  • Materials 316 stainless steel grade
  • Working load (lb) 3350
  • WLL (lb) 2290
  • Breaking load (lb) 11460
  • Weight (lb) 0.388

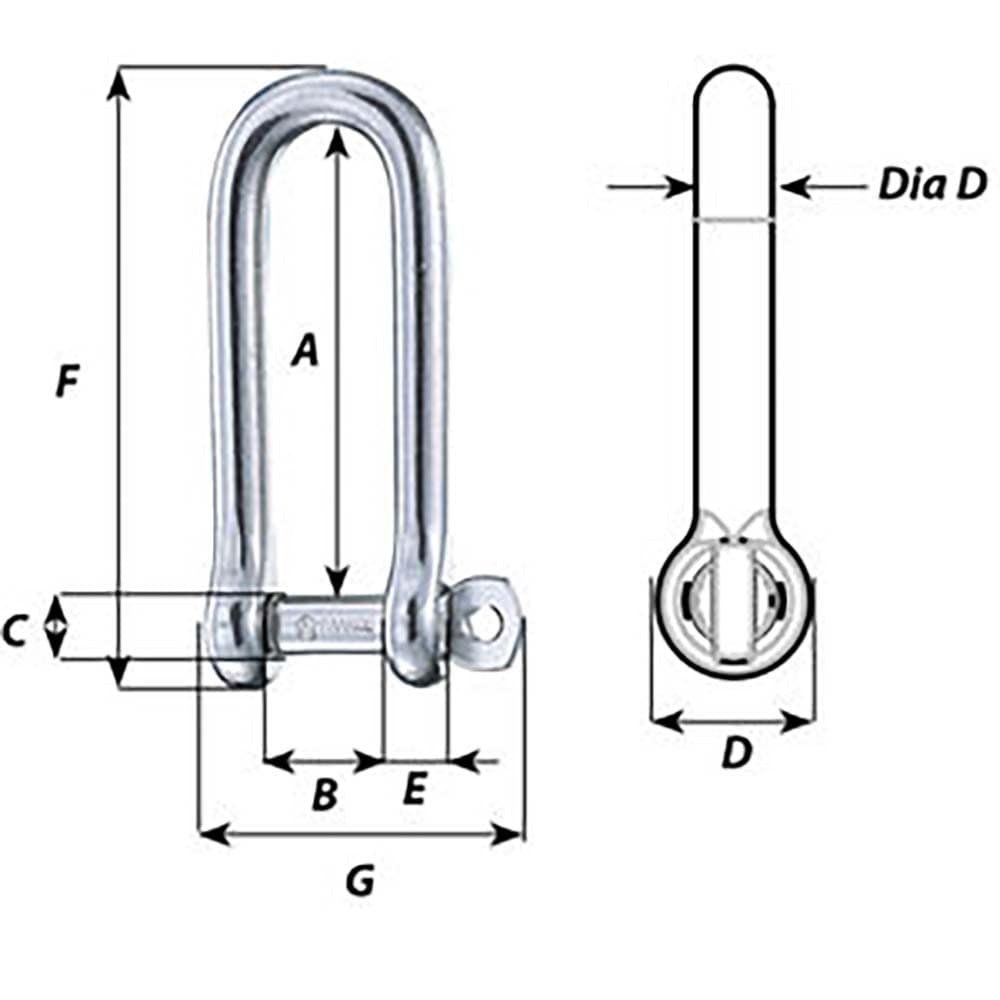

Dimensions (see 2nd image):

  • A (inch) 3-5/64"
  • B (inch) 25/32"
  • C (inch) 7/16"
  • D (inch) 53/64"
  • D diameter (inch) 25/64"
  • E (inch) 25/64"
  • F (inch) 4-1/16"
  • G (inch) 2-1/8"

Manufacturer : Wichard Marine
Manufacturer Part No : 01415
UPC : 768536014150
