Wichard Captive Pin Long D Shackle - Diameter 5mm - 3/16"
Regular price $30.00 Sale price$25.99 Save $4.01
Shipping calculated at checkout.
- In stock, ready to ship
- Inventory on the way
- Ships In Less Than 24 hours
- 30 Day Money Back Guarantee
- 100% Secure Checkout
Captive Pin Long D Shackle - Diameter 5mm - 3/16"
- Captive pin long "D" shackle forged in grade 316L stainless steel
- The pin is connected to the body at all times even when opened
- The pin is locked into one of the indentations
- No risks of loosening due to vibrations
- Outstanding working and breaking loads
- Standard applications of shackle requiring more length
- Attachment applications: blocks, head...
- Materials 316 stainless steel grade
- Working load (lb) 1050
- WLL (lb) 660
- Breaking load (lb) 3300
- Weight (lb) 0.053

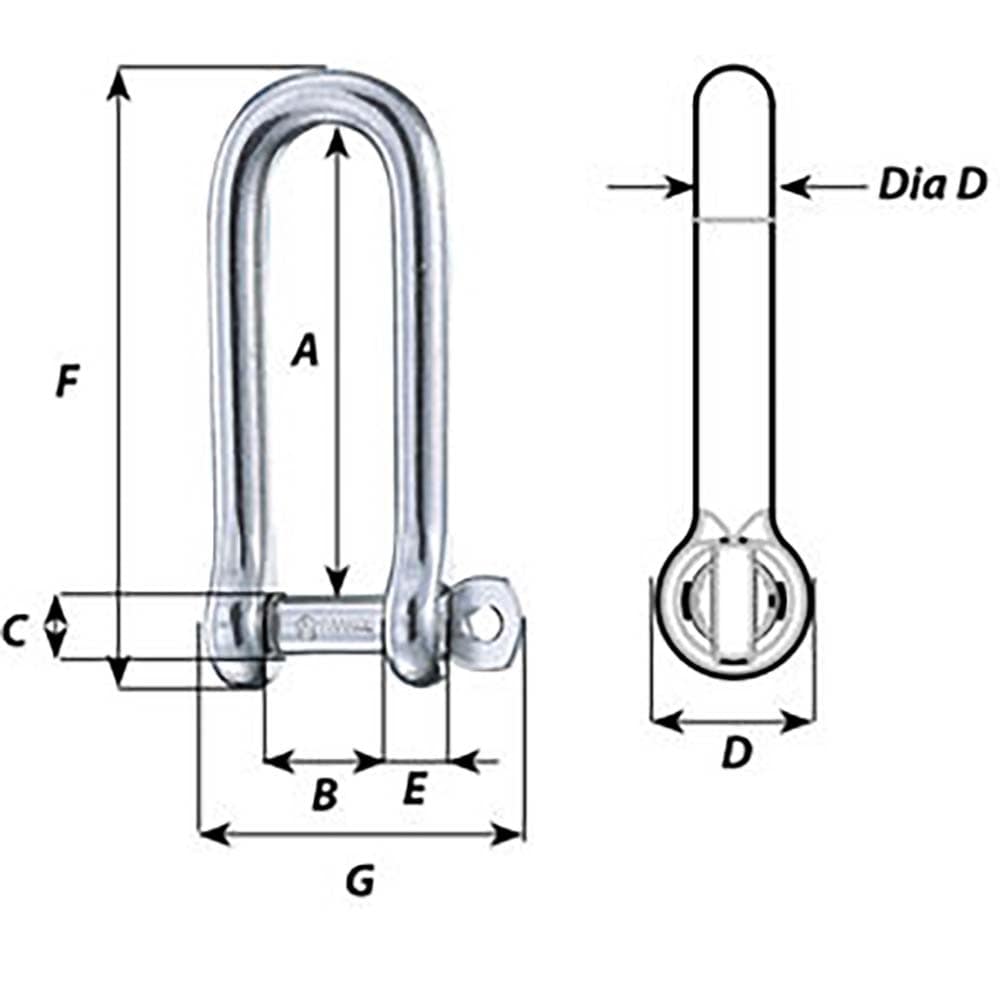

Dimensions (see 2nd image):
- A (inch) 1-17/32"
- B (inch) 25/64"
- C (inch) 15/64"
- D (inch) 7/16"
- D diameter (inch) 13/64"
- E (inch) 13/64"
- F (inch) 2-3/64"
- G (inch) 1-1/16"
Manufacturer : Wichard Marine
Manufacturer Part No : 01412
UPC : 768536014129
